1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine

Product Categories
Dongguan HOOHA Electrical Machinery Company Limited
Contact Now

1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine

Brand Name : HOOHA

Model Number : HH-80+40

Certification : CE/SGS/ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 53900/unit/month

Delivery Time : 60

Packaging Details : Film packing

Name : 1-16mm2 Single Power Cable Making Machine

Model : HH-80+40

Power : AC220V/110V 50/60HZ

Insulation : PE/PVC

Usage : Extruding

Conductor : Copper

Extrusion Capacity : 200 kg/h

Weight : 4500kg

Extrusion Speed : 300m/min

Measurement : 26*3.5*3.5 m

Contact Now

1-16mm2 Single Power Cable Making Machine Electrical Cable Extrusion Machine Wire And Cable Machine Production Line1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Product Description

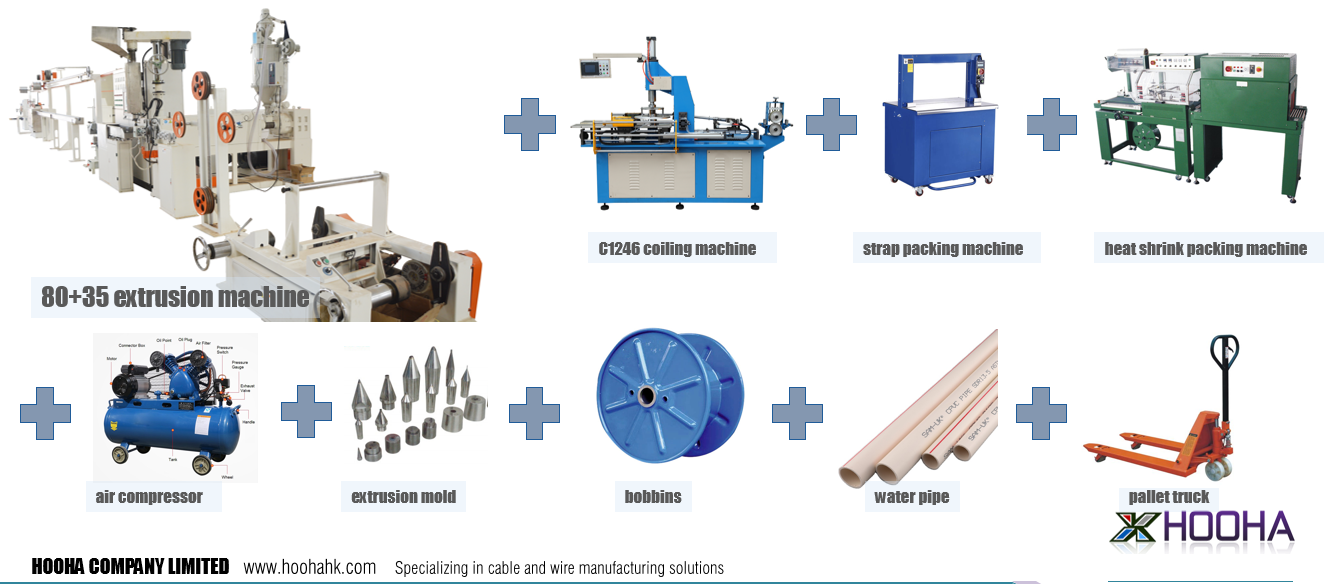

1-16mm2 Single Power Cable Production Line
Step 1
Copper Twisting
630/1000 high speed wire bunching machine
1 set
Step 2
Wire Insulation
80+40 Wire Extrusion Machine
1 set
Step 3
Cable Coiling
1040/1860 Cable Coiling Machine
1 set
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine

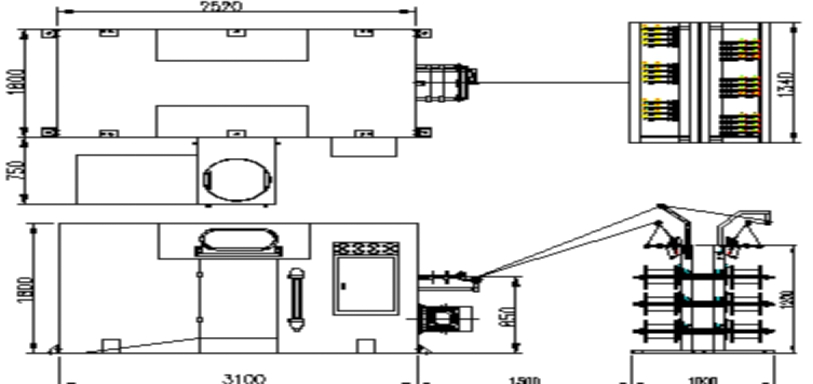

800/1000 wire bunching machine
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
80+40 Wire Extrusion Machine
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine

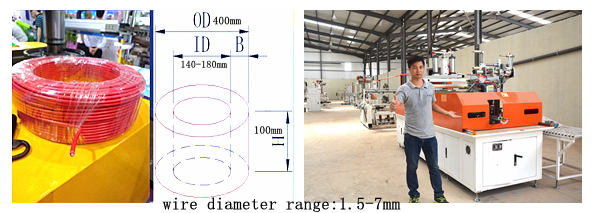

1040/1860 coiling wrapping machine
Step 1
No.
Items
Quantity
1
650 Bunching machine
1 unit
2
Pay off stand multi-core copper wire
1 unit
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Step 2
No.
Items
Features
1
Inlet Wire Diameter
1～15 mm
2
Finished Wire Diameter
2～20 mm
3
Cross Sectional Area
1～10 square mm
4
Extrusion Speed
Max 300 m/min
5
Extrusion Capacity
200 kg/h
6
Installed Capacity
65 kva
7
Voltage
380V, can be customized
8
Weight
4500 kg
9
Measurement (L*W*H)
26*3.5*3.5 m
10
Workers recommendation
3 workers
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine

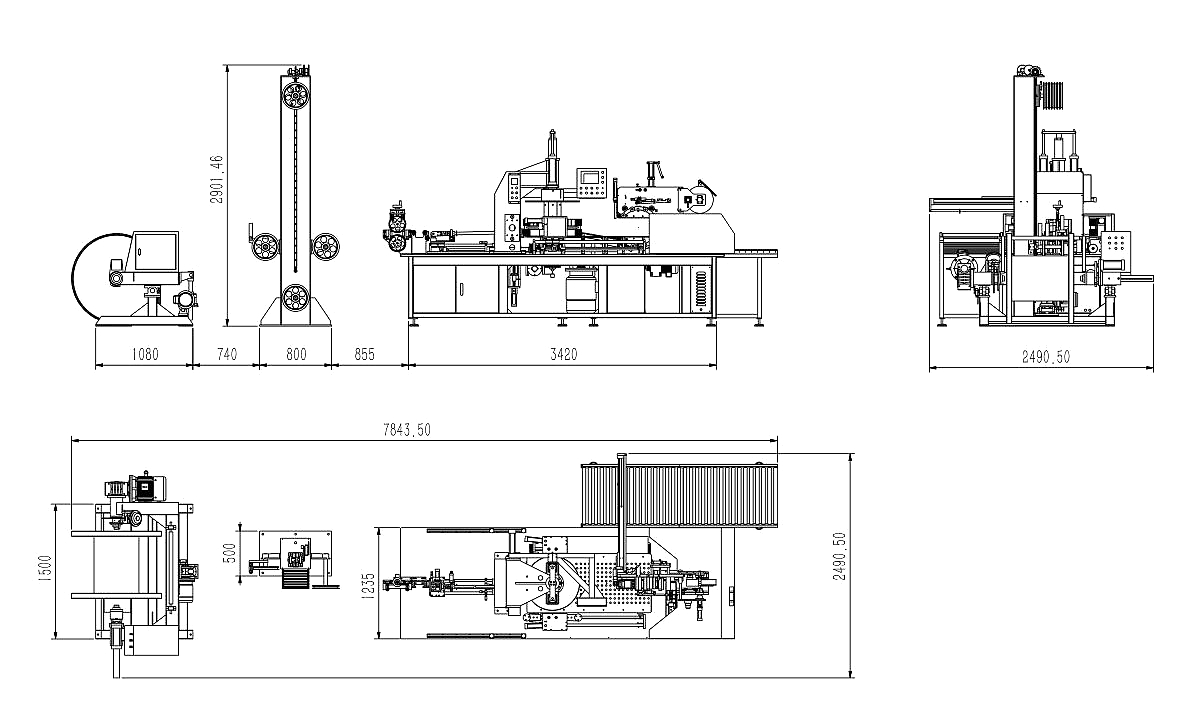

Step 3
No.
Items
Quantity
1
400-630 Magnetic Powder Type Payoff Stand
1 Set
2
Wire Straightening Device
1 Set
3
PLC Automatic 1040 Coiling And Wrapping Main Machine
1 Set
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Related products
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Spool/Bobbin
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine

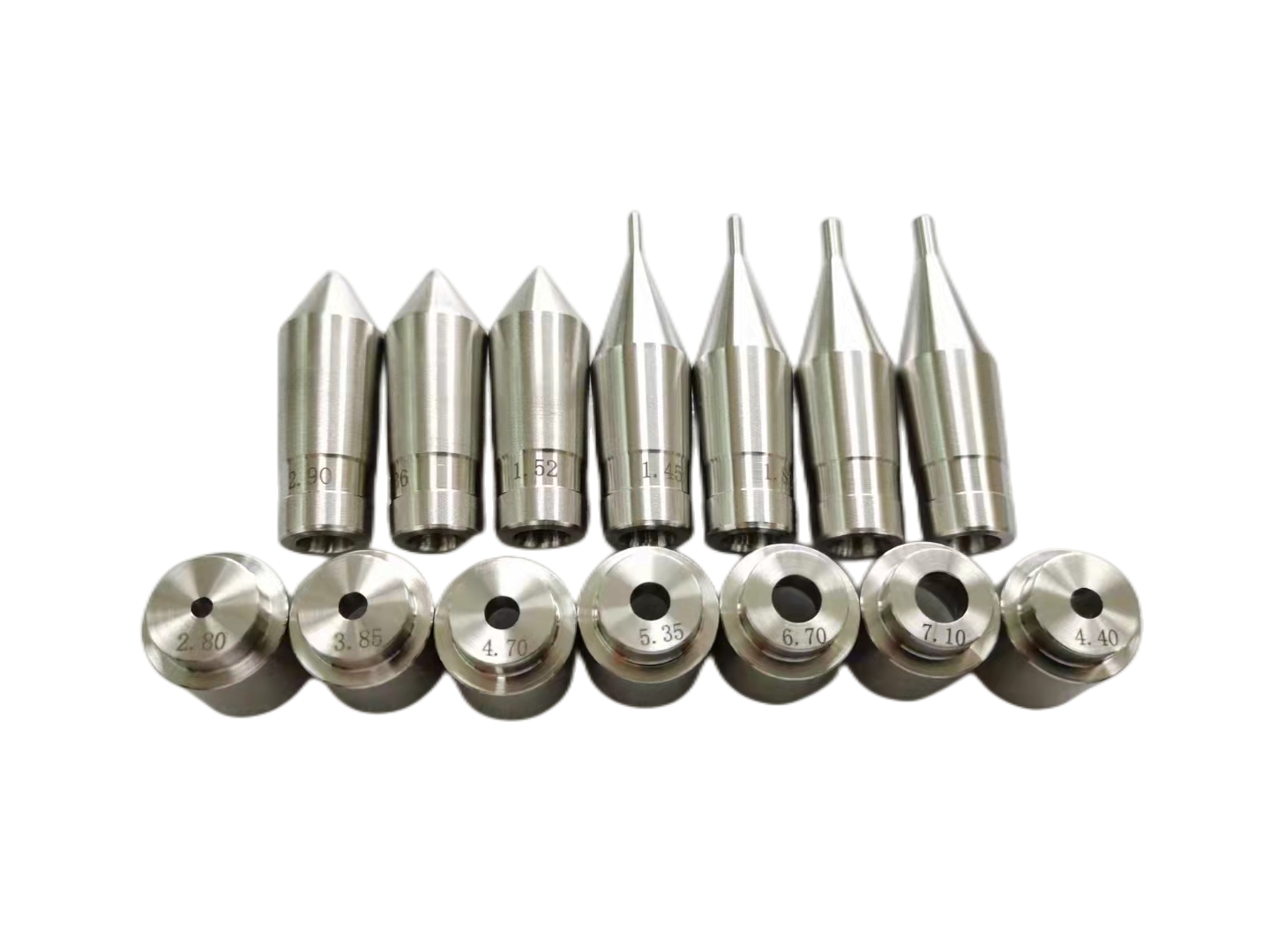

Extrusion dies
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine

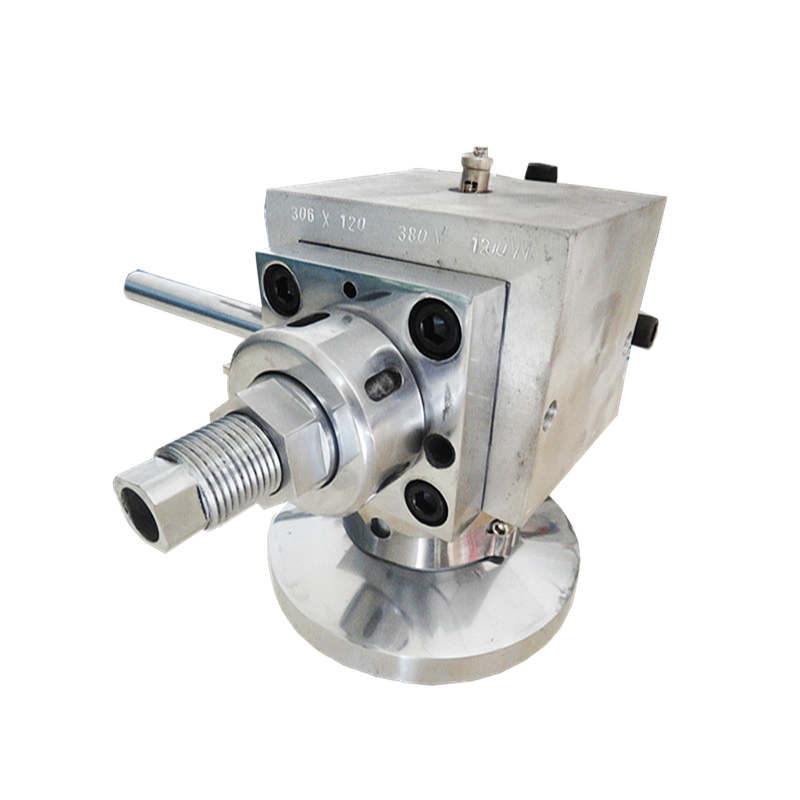

Extruder head
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Blower
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Heat Ring
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine

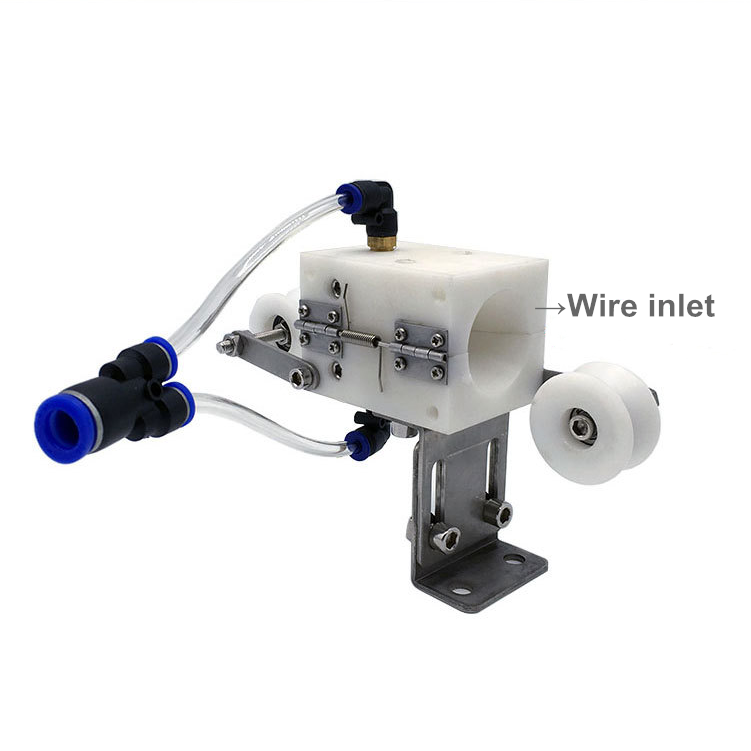

Guide wheel
Company Profile
00:00
02:00
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Customer Cases
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Indonesia Project
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Tanzania Project
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Algeria Project
Exhibitions ＆ Certifications
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
ShangHai Exhibition
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Moscow Exhibition
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Thailand Exhibition
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
Packing & Delivery
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
1-16mm2 Single Power Cable Making Machine , Electrical Cable Extrusion Machine
1. Film packing 2. Wooden package 3. Enclosed wooden package
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),South America(15.00%),South Asia(10.00%),Eastern Asia(6.00%),Eastern Europe(4.00%),North America(3.00%),Southern Europe(3.00%),Northern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drawing Machine/Stranding Machine/Cabling Machine/Extrusion Machine/Bunching Machine

4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
